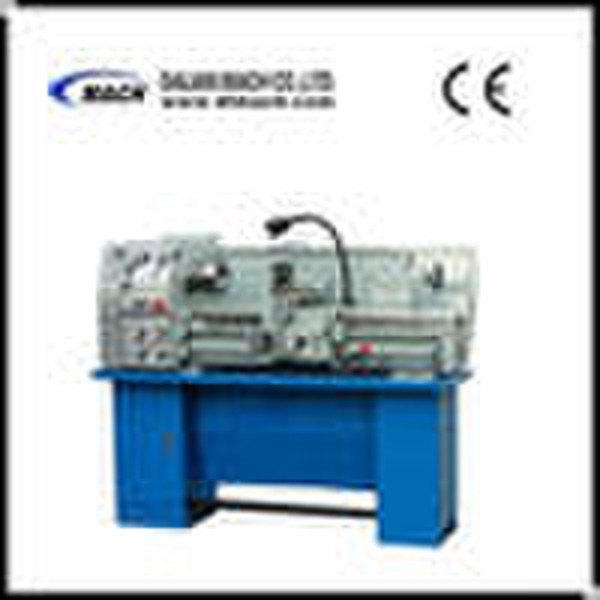

Gear-Headed Engine Lathe Model: 6230A-2

Gear-Headed Engine Lathe Model: 6230A-2 Main Specification: Max.swing over bed: 300mm Max.swing over cross slide: 180mm Max.swing over gap: 450mm Distance between centers : 750/890mm Width of bed: 180mm Spindle bore: 38mm Taper of spindle bore: M.T.5 Range of spindle speeds: 65-18101400rpm Taper of spindle speeds: M.T.3 Metric threads can be cut: 0.4-7mm Inch threads can be cut: 4-60TPI Range of longitudinal feeds: 0.0527-1.2912mm/rev Range of cross feeds:0.014-0.3448mm/rev Max.travel of saddle: 560/760mm Max.travel of crass slide: 130mm Max.travel of top slide: 75mm Max.travel of tailstock quill : 100mm Motor power 1.1kw/1.5kw Packing size(L×W×H): 1680×750×1420mm Net weight: 510kg
